Parameter
Brand
：
LMENGER
Aspect Ratio
：
5:4
Panel Type
：
Active Matrix TFT LCD,LED Backlight
Resolution
：
1280*1024
Touch Technology
：
Capacitive 10 Points Touch
Support Systems
：
Windows,Android,Linux
Other Features
：
Industrial quality;IP65(front) waterproof and dustproof
Contact Us
Prev: 18.5" Industrial PCAP Touch Monitor(3K Series)
Next: 21.5" Industrial PCAP Touch Monitor(3K Series)
Product Details

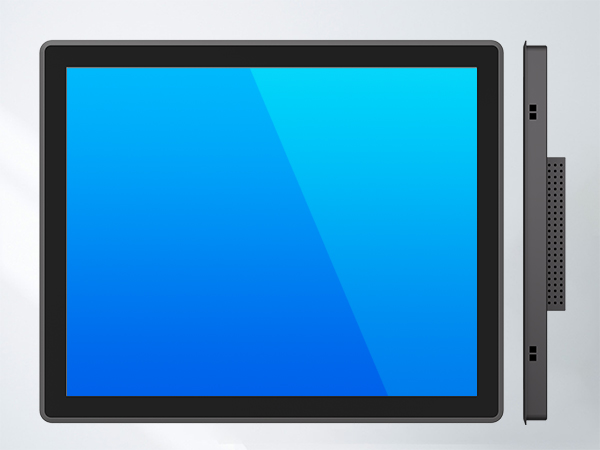

19-inch industrial touchscreen

Product Overview

The Touch Monitor delivers precise, reliable, and rugged touch interaction capabilities designed for demanding environments. This series offers a wide range of size options from 10.1 inches to 23.8 inches, meeting the precise interaction needs of diverse application scenarios such as industrial automation, medical equipment, and outdoor information kiosks.

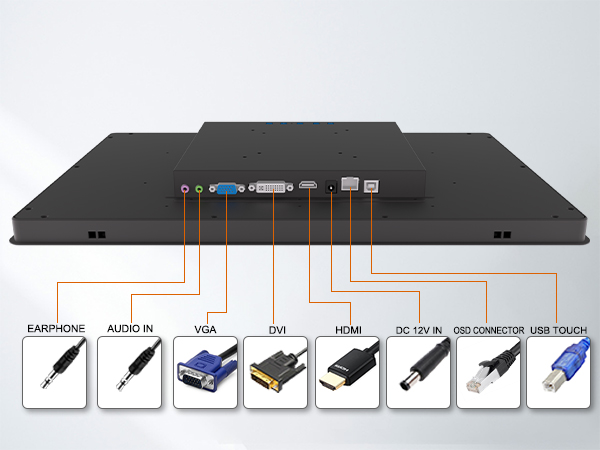

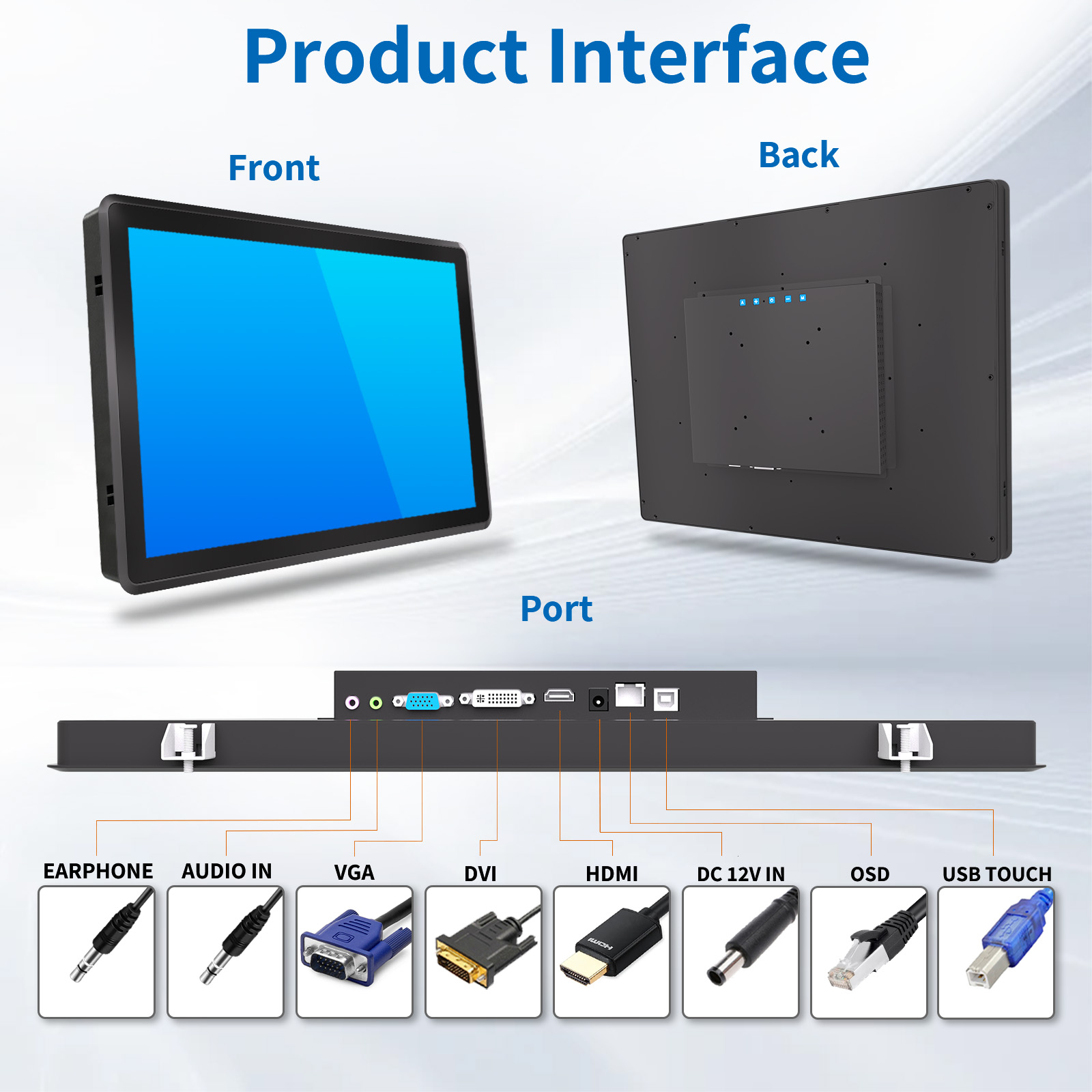

Multiple Interface Options

Offering VGA, DVI, and HDMI input interfaces, along with a USB Type-B port for touch functionality and a DC power jack. Touch all-in-one PCs integrate a complete computing unit and feature VGA and HDMI display ports, with all connectors positioned on the rear underside for easy installation.

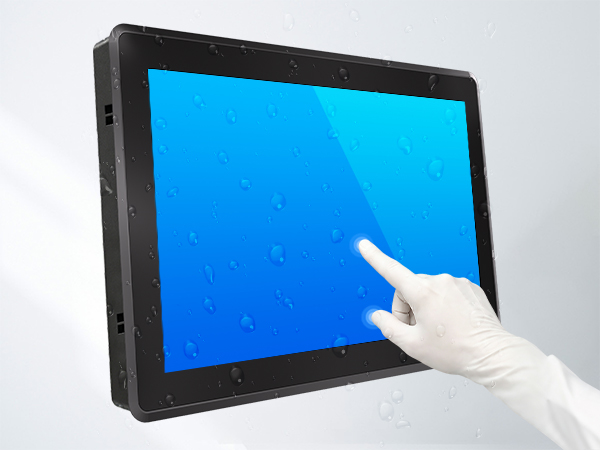

industrial-capacitive-touchscreen-monitor


industrial-capacitive-touchscreen-monitorProduct Features

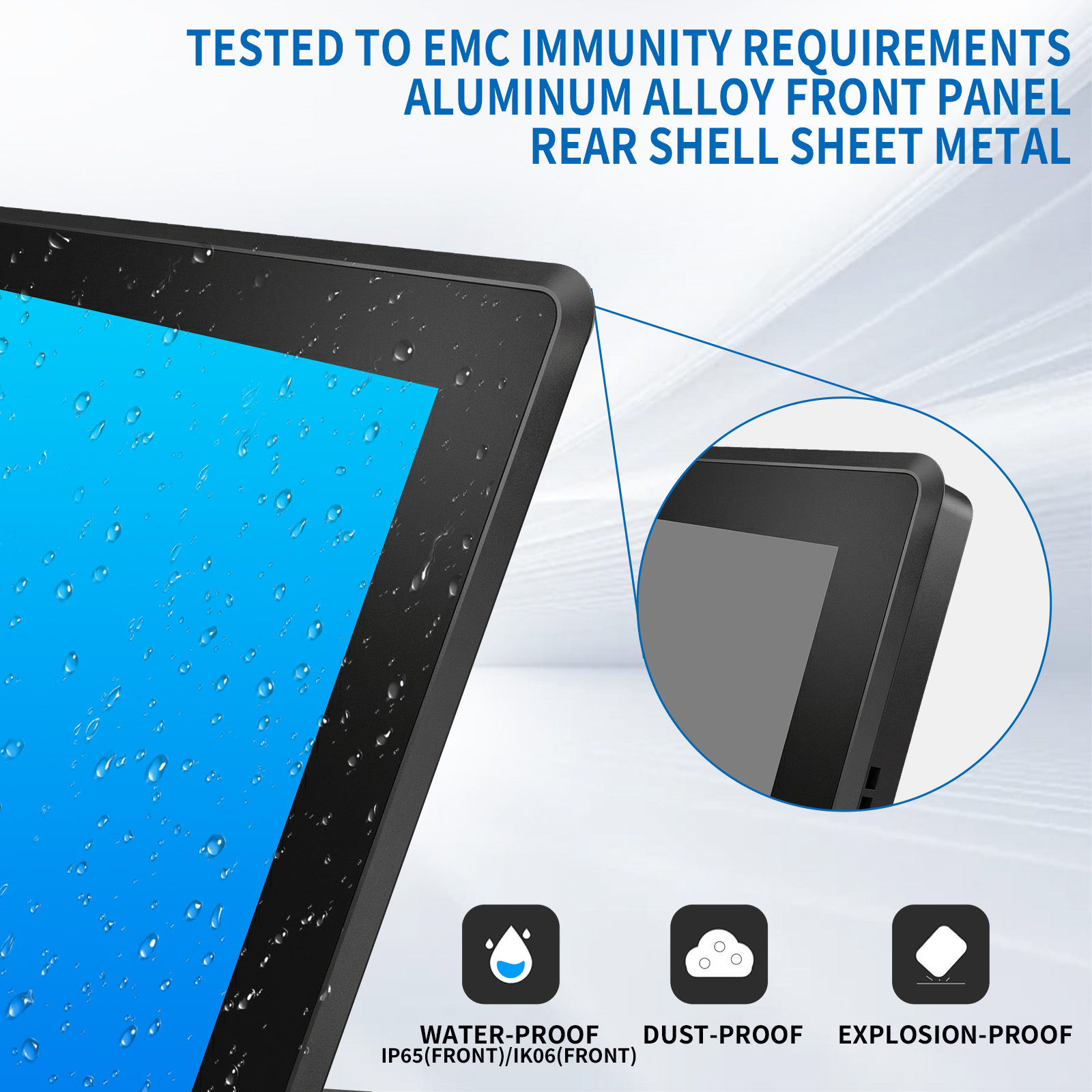

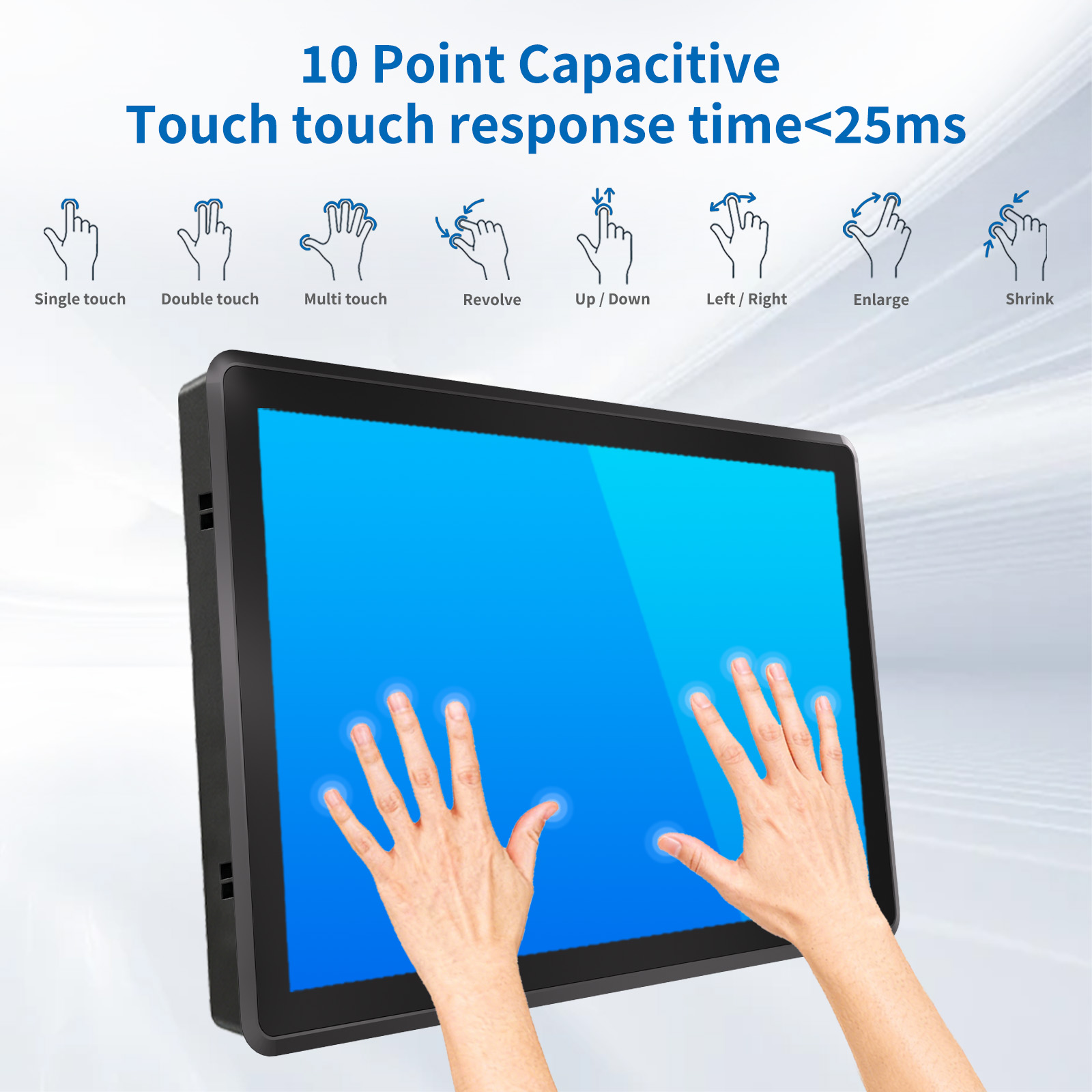

Industrial Touch Monitor features projected capacitive (PCAP) technology, supporting multiple simultaneous touch points with high sensitivity, precise positioning, and strong anti-interference capabilities, ensuring smooth responsiveness even when used with gloves or on a wet screen. Equipped with an A+ grade industrial LCD panel, the front panel achieves IP65 dustproof and waterproof rating as well as IK06 impact protection. Interface options include VGA, DVI, HDMI, and USB, with compatibility across major operating systems including Windows, Android, and Linux.

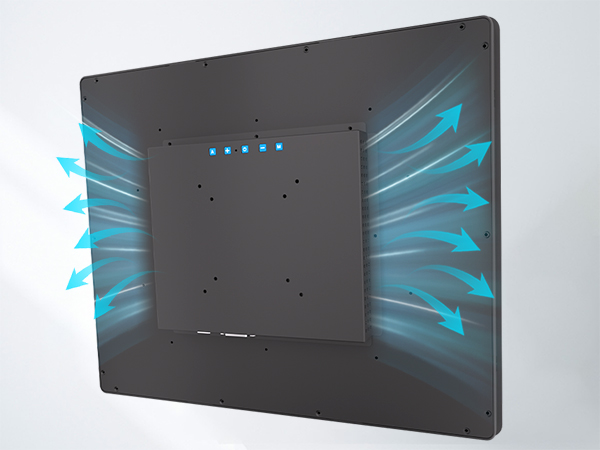

Efficient Thermal Management

Ventilation holes on the rear cover enable efficient heat dissipation, ensuring long-term stability under 7×24 continuous operation. This design balances cooling requirements while maintaining the unit's sealed protection integrity.

panel-pc-capacitive-touchscreen



Application Field

Industrial HMI touch panel for smart factory production line

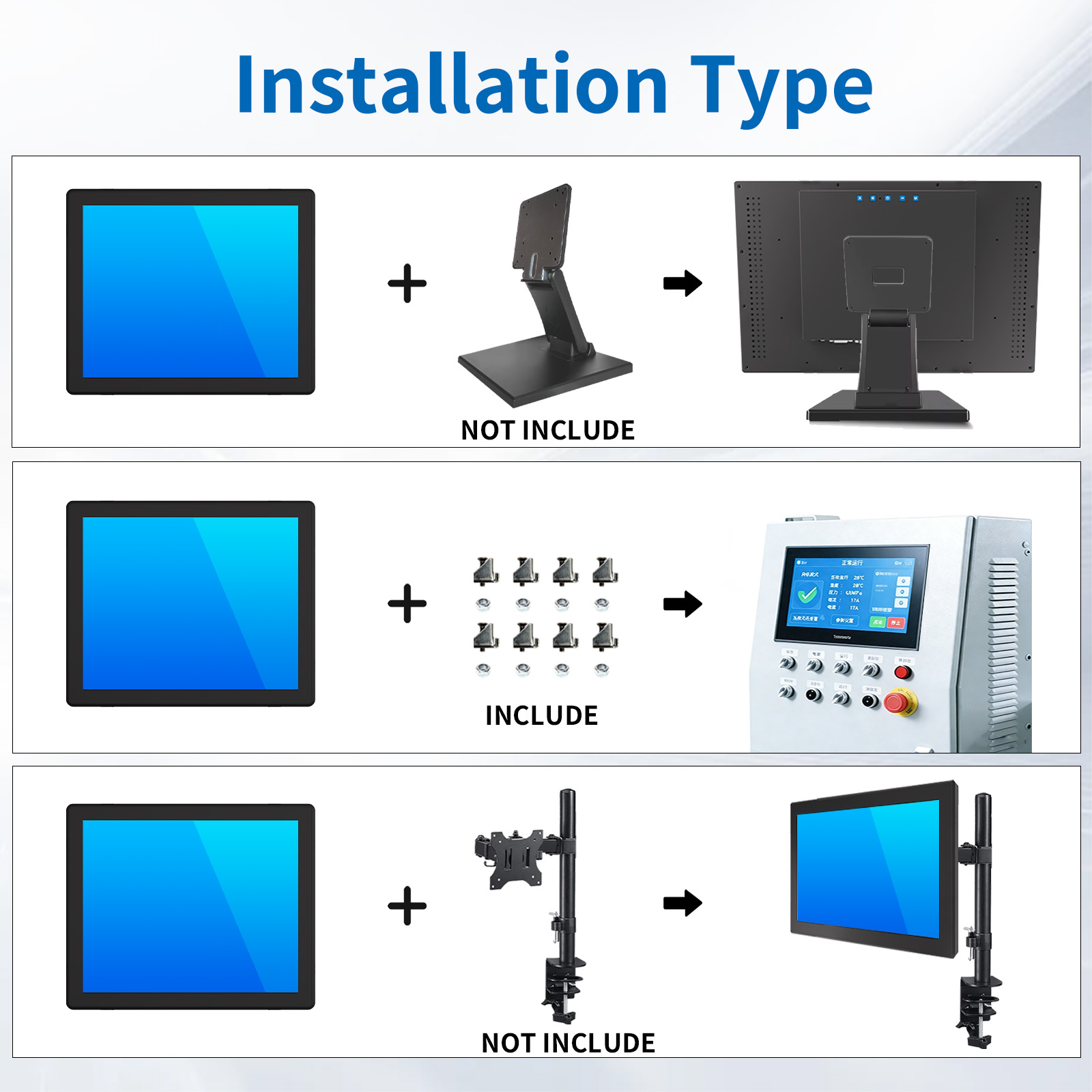

Multiple Installation Options


EmbeddedDesktopCantilever

Industrial Monitor Mounting Methods


Specifications


Product Name

Industrial PCAP Touch Monitor(3K Series)

Size19 Inch(5:4)
Display TypeActive Matrix TFT LCD, LED backlightColor16.7M

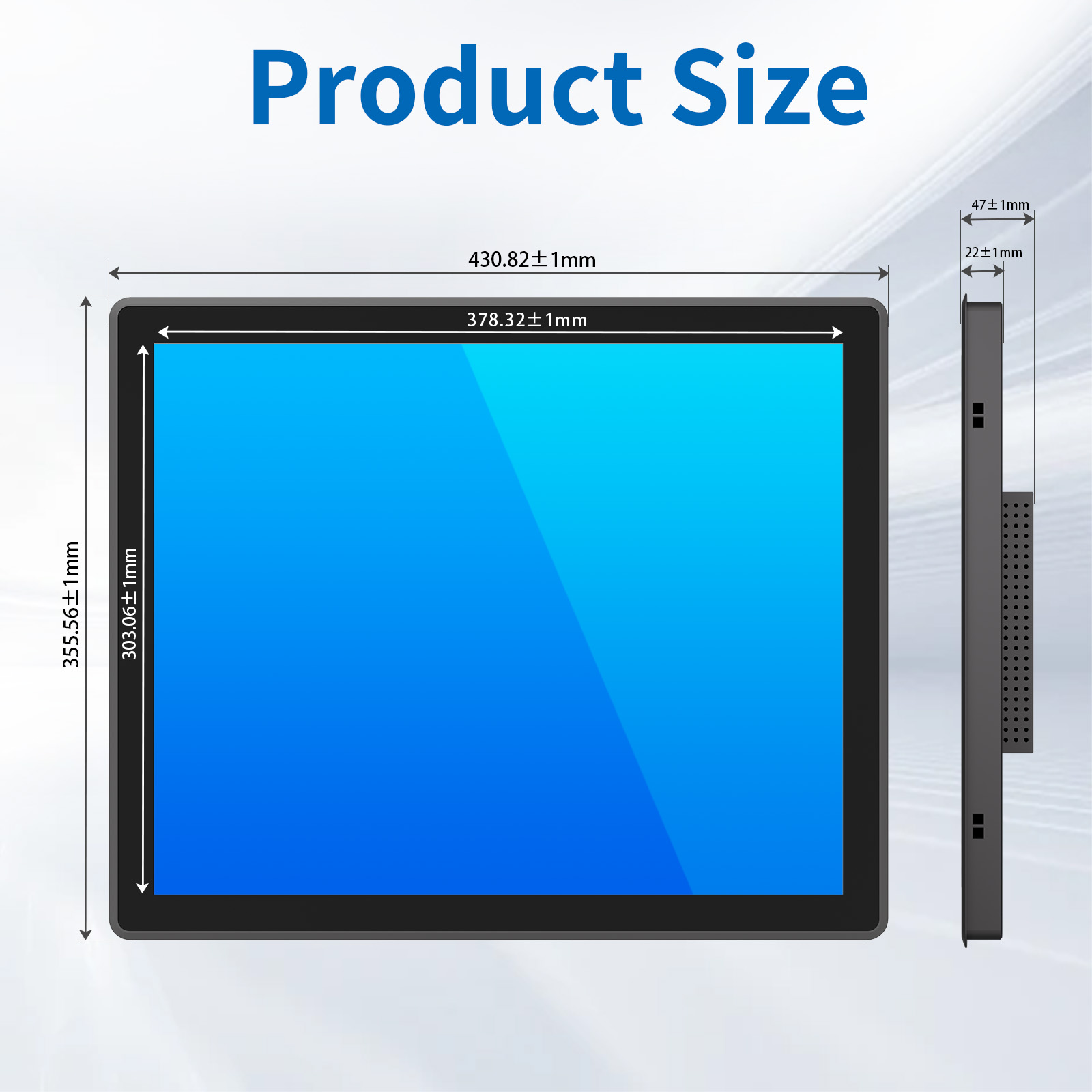

Dimensions431*356*47mmView Area

376*301mm

Touch Point

10 points

Touch Power Supply Voltage5V
Touch Controller ChipEETI, ILITEK, WEIDASupported Touch SystemsWindows, Android, Linux
Video Input FormatSelectable:VGA, DVI, HDMI, DPVideo Signal ConnectorDVI-D (Dual-Link), Female HDMI
Operating Temperature0°C to 50°CStorage Temperature-20°C to 60°C
Operating  Humidity20%–80% (non-condensing)Storage Humidity10%–90% (non-condensing)
Protection

IP65 (front), IK06 (front)

Surface TreatmentAG, AR, AF (optional)
Mounting OptionsVESA mount; Clip mountCertificationsRoHS, FCC, CE, CB, HDMI Membership
