![]() | Product Overview |
Product Advantages | ![]() |

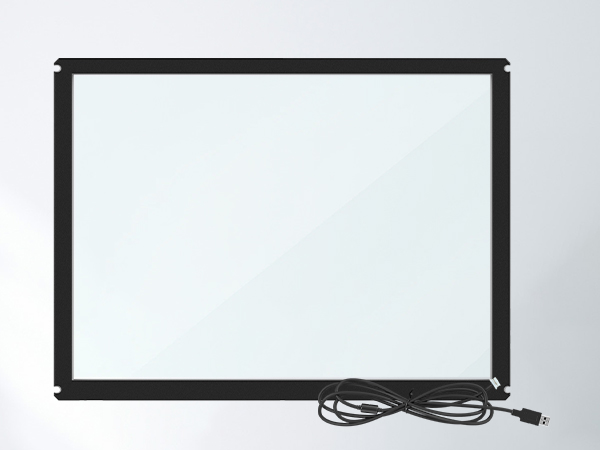

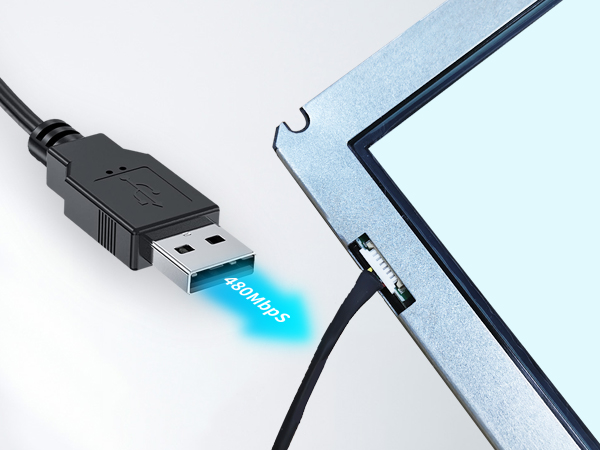

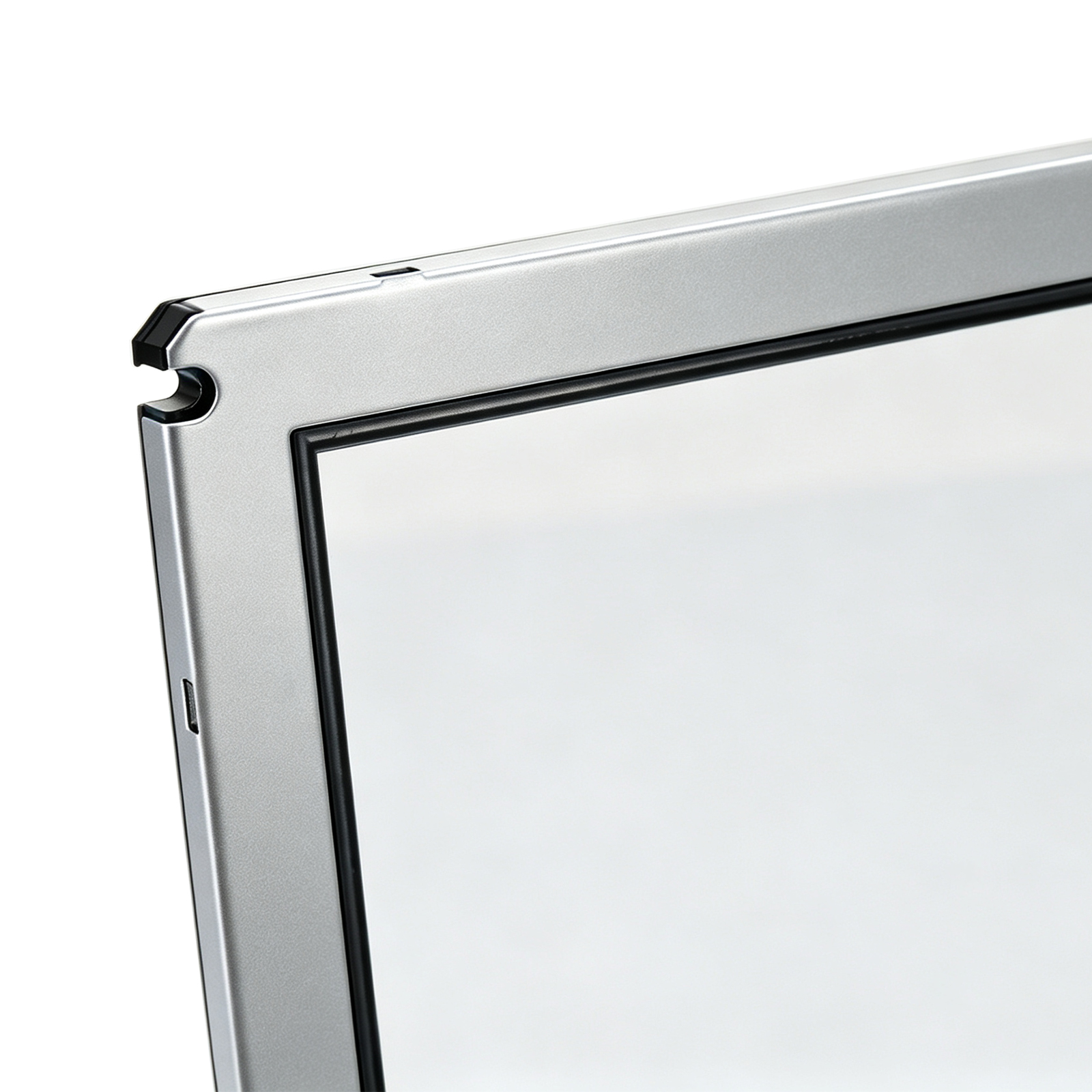

![]() | Product Features The LMENGER infrared touch screen features a black aluminum alloy bezel, which is not only sturdy and durable but also slim and aesthetically pleasing. In terms of connectivity, it comes with a 1.5M cable and connects via a USB 2.0 interface—no additional power cord is required. It offers plug-and-play functionality with no driver installation needed. |

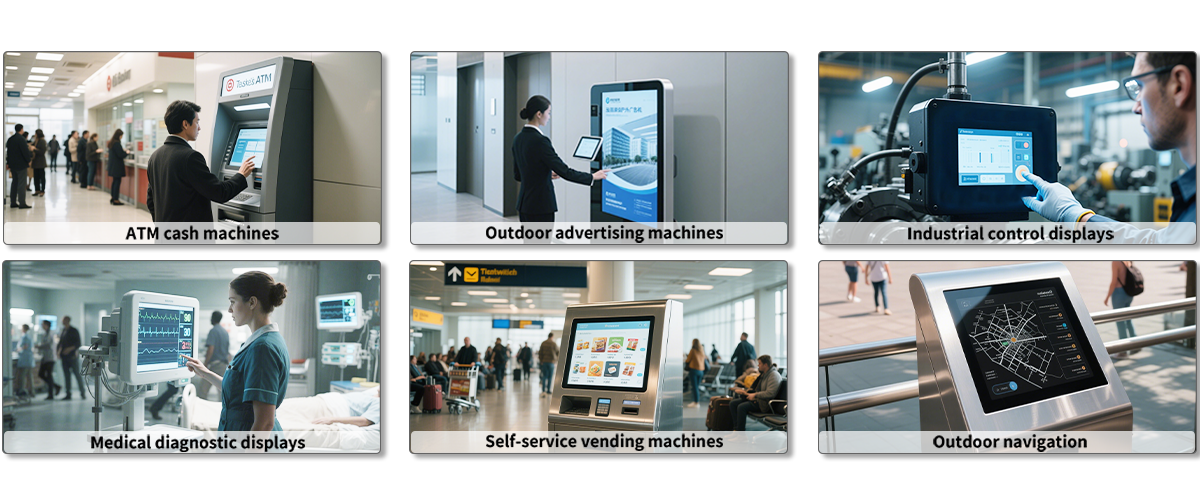

Application Field

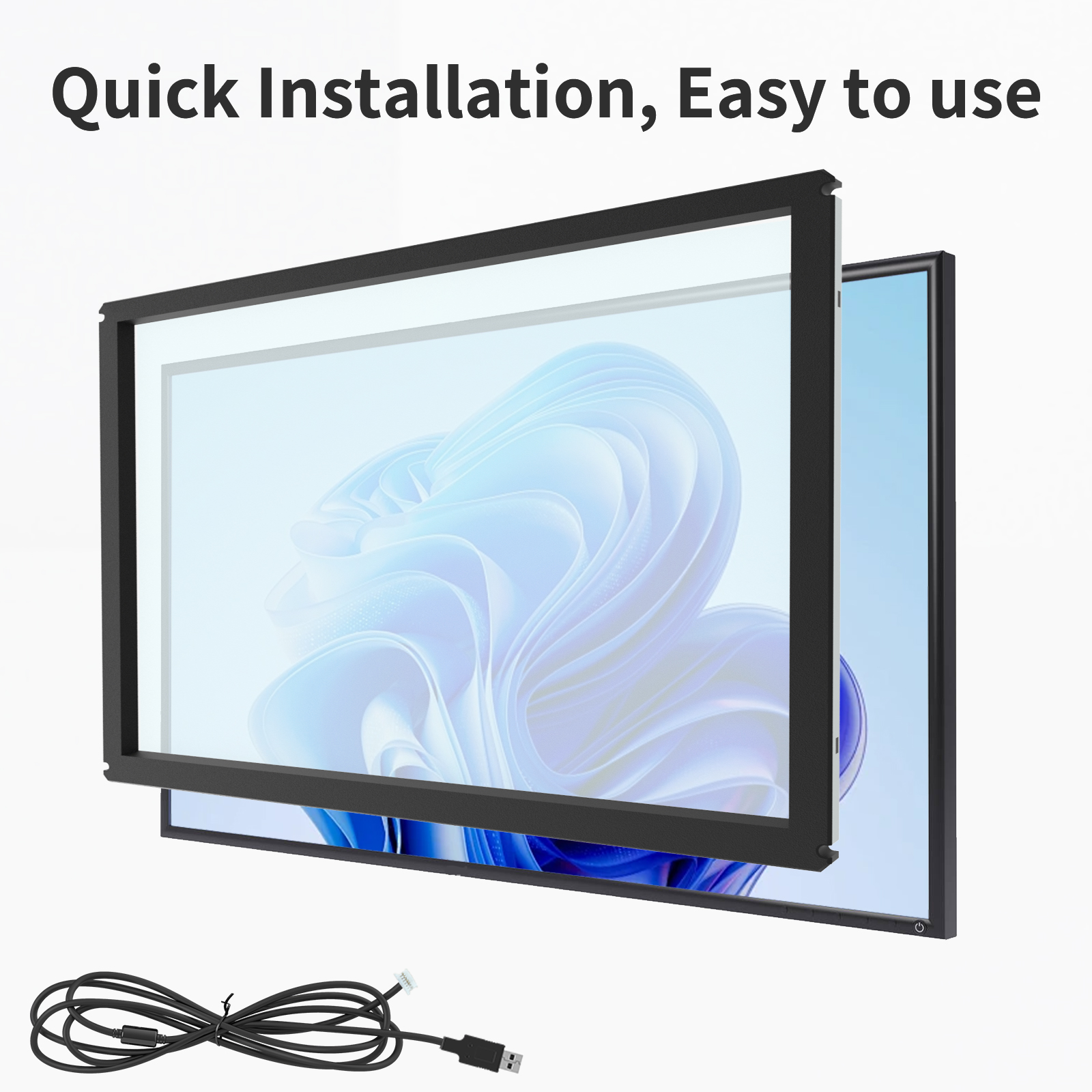

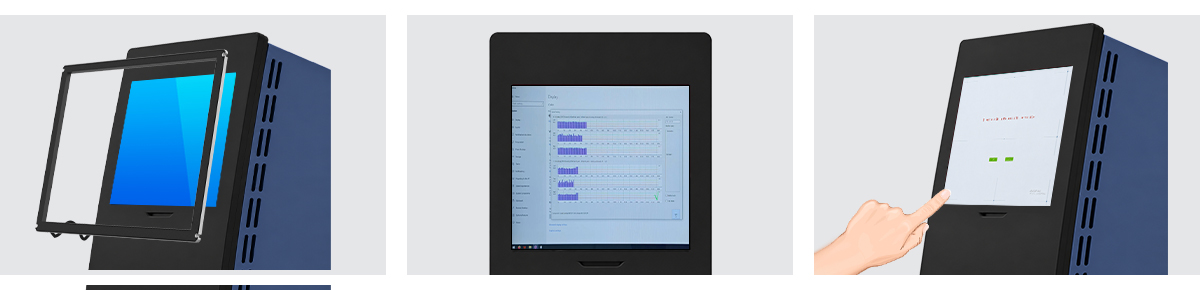

Mounting Steps
| 1.Prepare installation environment and tools.→2.Clean the display surface and mounting area.→3.Align and install the infrared touch frame around the display.→4.Secure the frame with brackets or screws.→5.Connect the USB touch interface to the host device.→6.Install drivers and calibrate the touch system.→7.Test touch accuracy and multi-touch performance.→8.Complete final inspection and operation verification |

Specifications

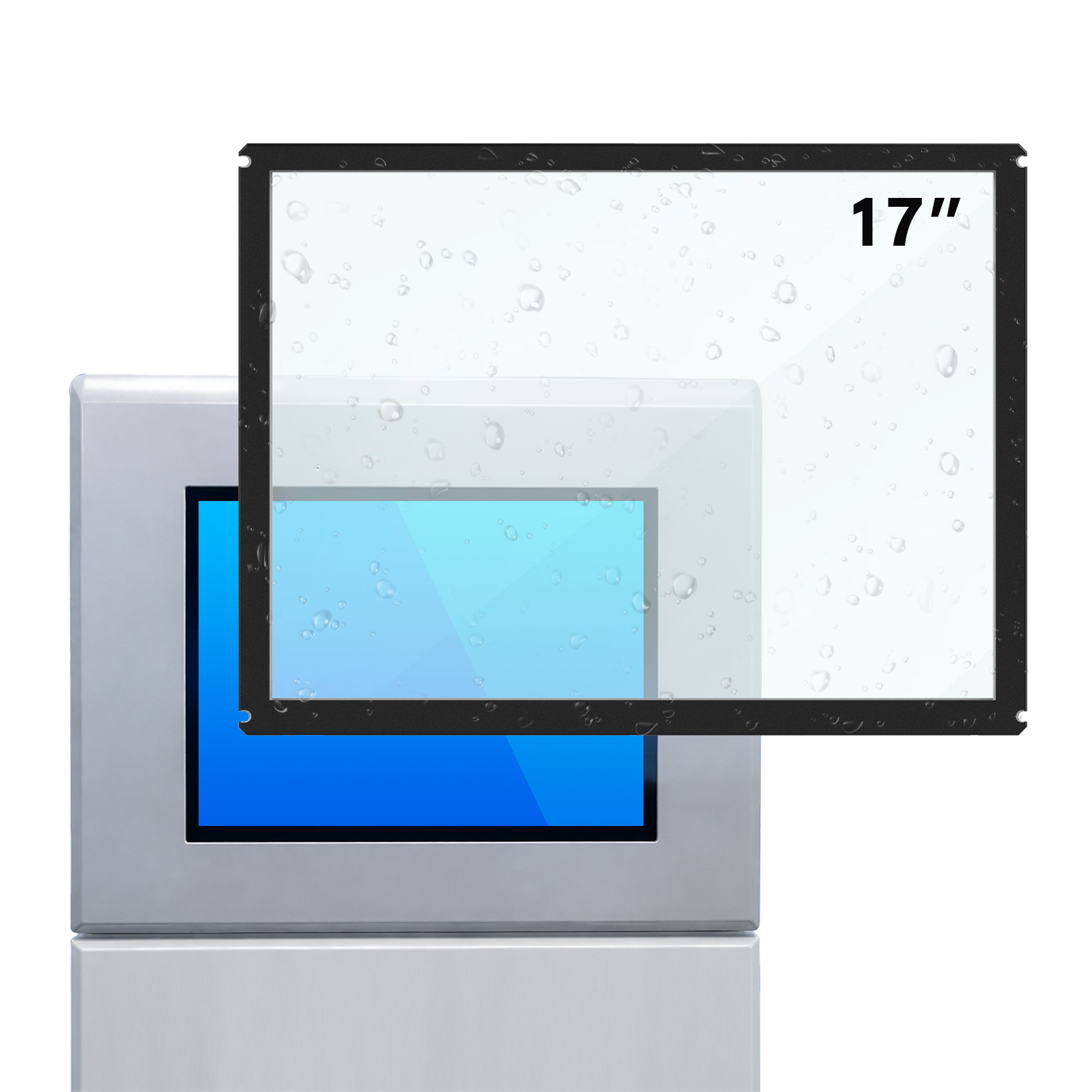

| Product Name | Infrared Touch Screen(TR Series) | Size | 17 Inch |

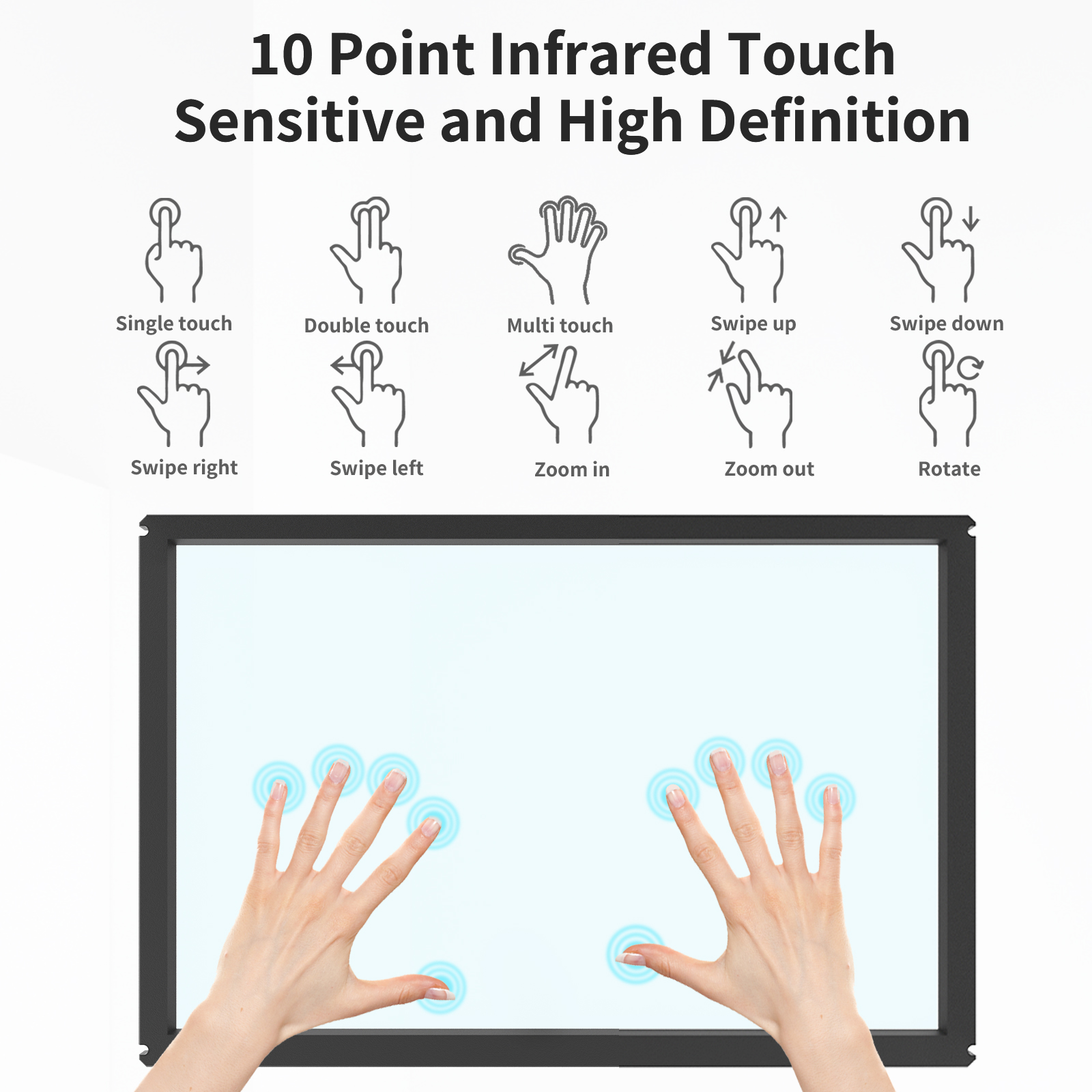

| Aspect Ratio | 5:4 | Touch Point | 10 points |
| Dimensions | 376*308mm | View Area | 340*272mm |
| Light Transmission | >92% | Operating Voltage | DC 5V ±5% |
| Operating Temperature | -10°C to 50°C | Storage Temperature | -20°C to 60°C |
| Touch Lifespan | Unlimited touches | Connection | USB 2.0+UATR, plug-and-play |
| Transmission Speed | 480 Mbps | Response Time | <10 ms |

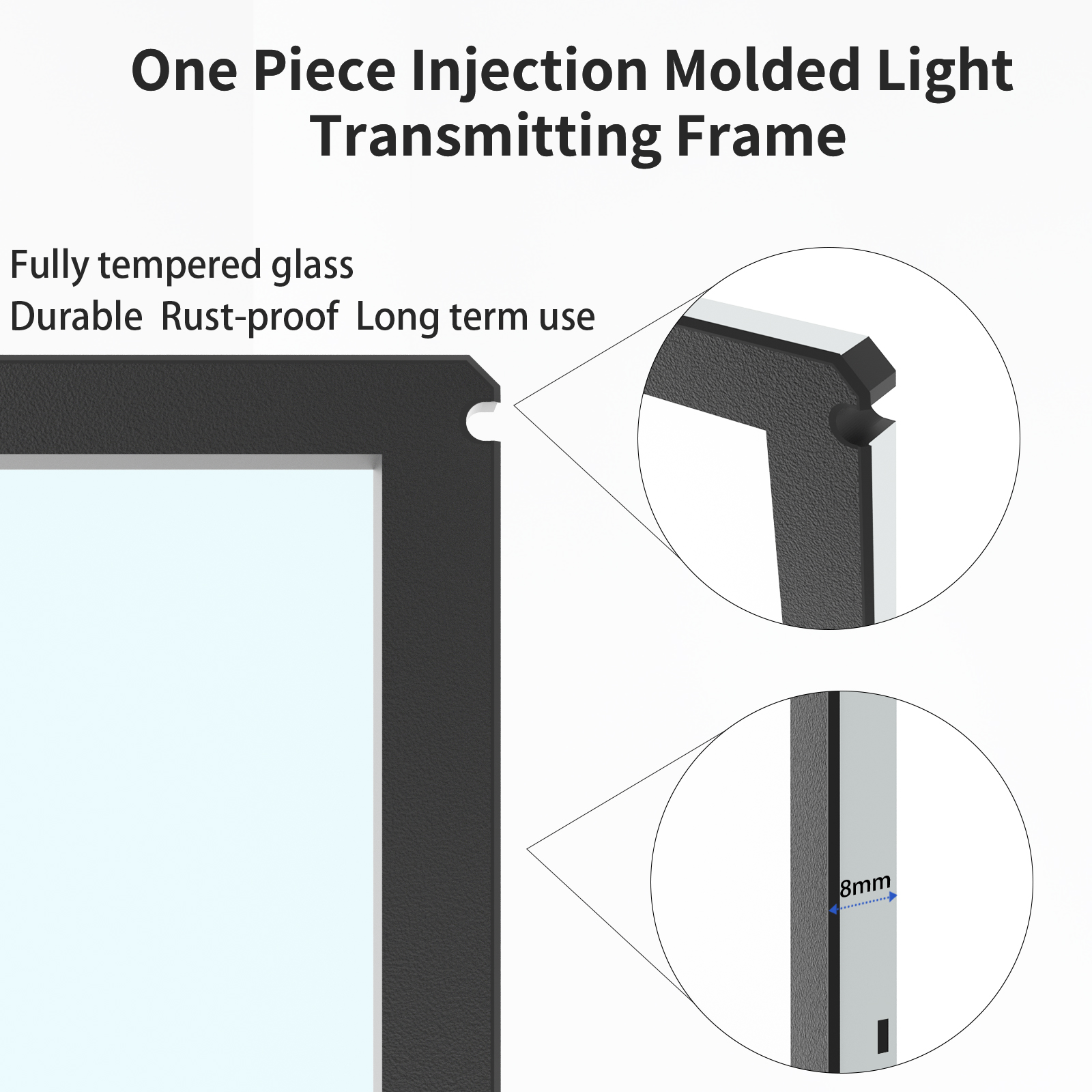

| Touch Pressure | Zero pressure | Material | Aluminum alloy frame+Tempered glass |
| Supported Resolution | 32768 x 32768 | Touch Medium | Finger, gloved hand, stylus, and other opaque objects |
| Drawing Distance | 20mm | Touch Precision | Center area≤1 mm,edge ≤3mm |
| Operating Current | <200mA | Light Resistance | Anti-light at all angles;80000Lux |
| Supported Systems | Windows, Android, Linux | Humidity | 90% relative humidity, non-condensing |
