Parameter
Brand
：
LMENGER
Aspect Ratio
：
16:9
Panel Type
：
Black Frame
Resolution
：
32768×32768
Touch Technology
：
Infrared 20-40 Points Touch
Support Systems
：
Windows,Android,Linux
Other Features
：
Sunlight-resistant;Operable indoor and outdoor
Contact Us
Prev: 32" Infrared Touch Frame(TL Series)
Next: 43" Infrared Touch Frame(TL Series)
Product Details

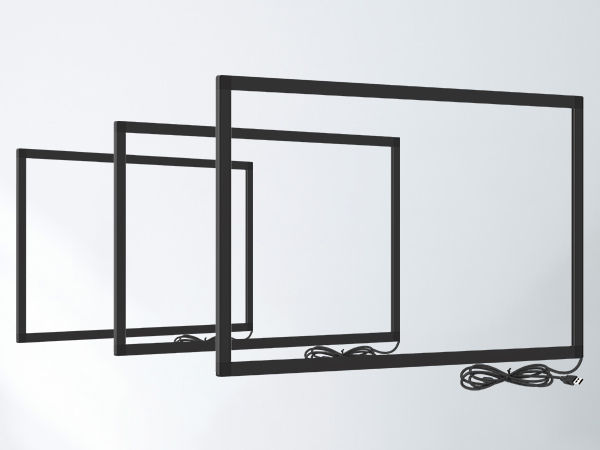

Infra-red Touch Overlay

Product Overview

Infrared touch frames provide flexible and mature touch solutions for display retrofitting projects. Available in sizes from 32” to 65” , widely applied in self-service kiosks, advertising players, industrial control equipment and intelligent query terminals.



Product Advantages

Equipped with 20-point simultaneous multi-touch capability, the TL Series infrared touch frame delivers remarkable touch compatibility. Touch input is activated via any opaque medium, ranging from human fingers, passive stylus pens and gloved palms to teaching chalk rods. Immune to disturbance from intense outdoor sunlight, indoor ambient light and chalk dust, the unit integrates premium waterproof, dustproof and anti-interference properties. Its touch performance remains steady throughout prolonged round-the-clock continuous operation.

IR Touch Screen Frame

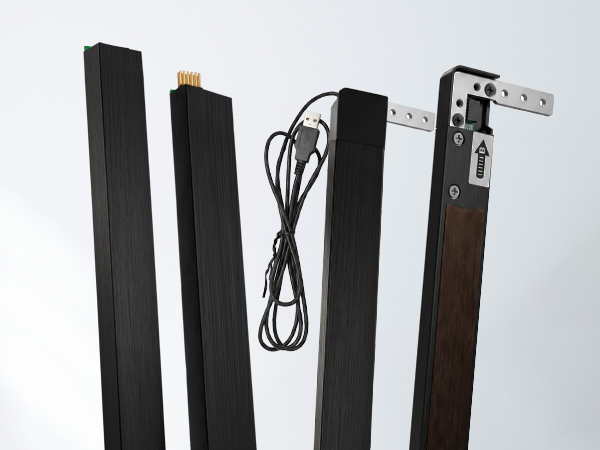

Touch Panel FrameProduct Features

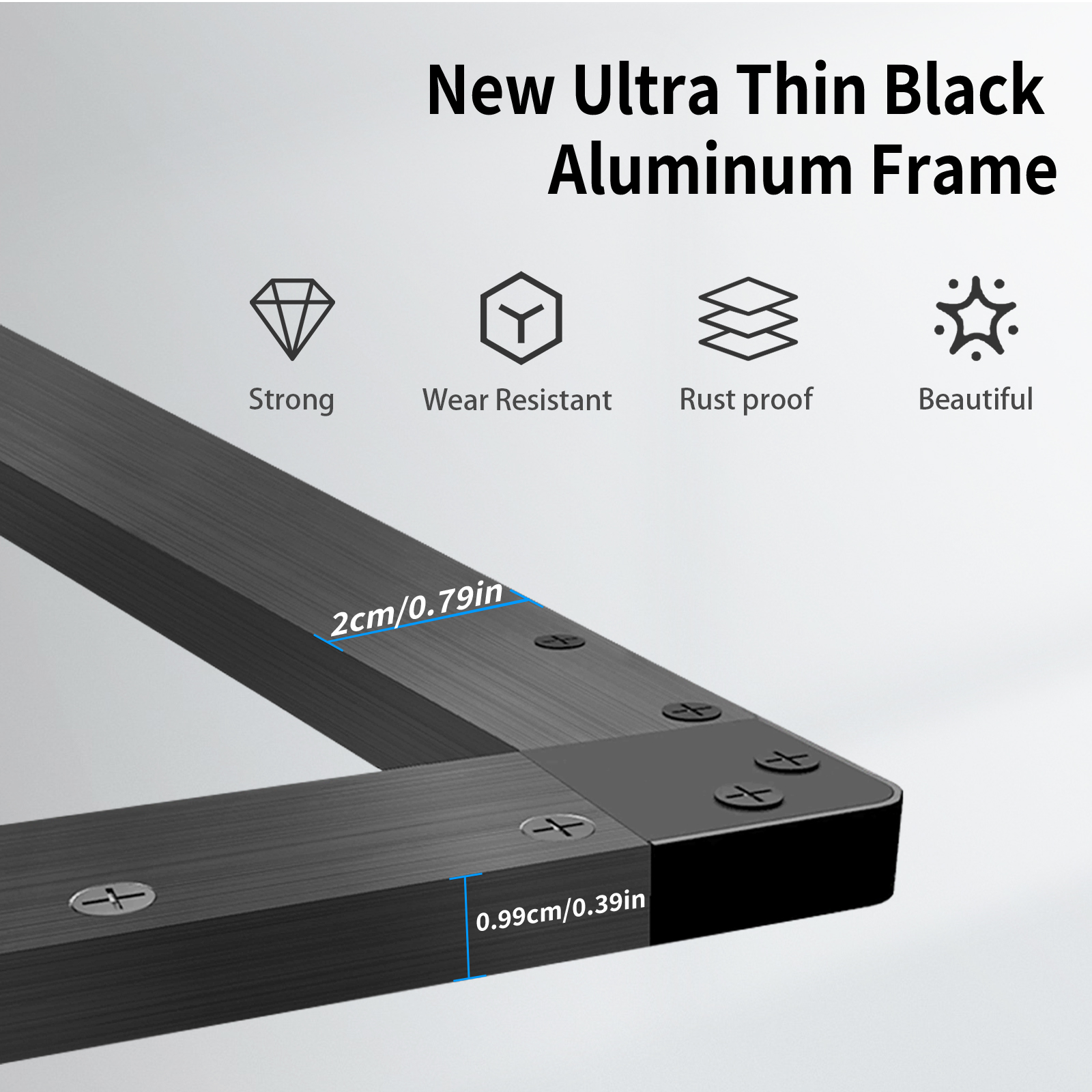

1.Rustproof aluminum alloy housing: sturdy & durable
2.Detachable & assemblable structure, easy for quick installation

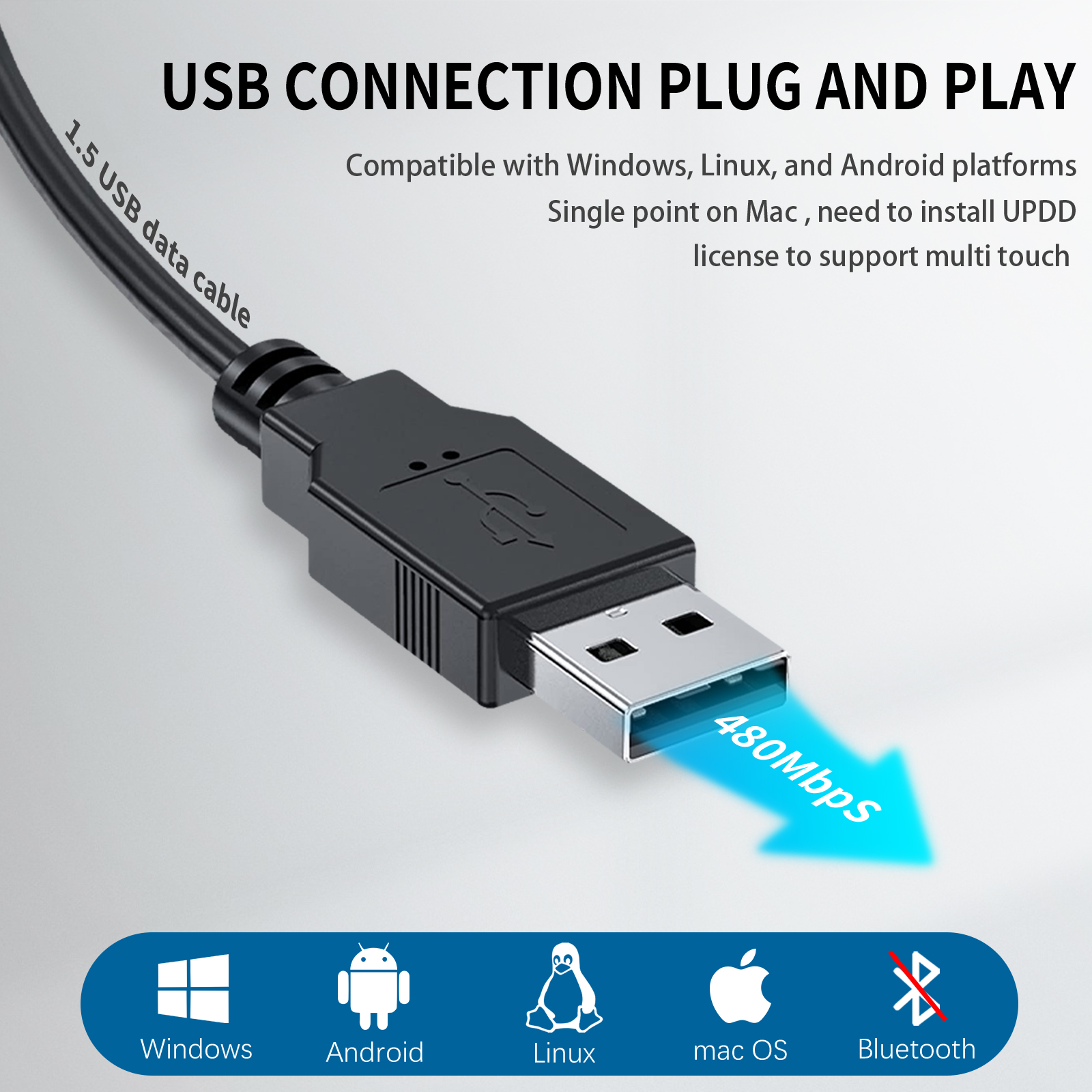

3.Alloy USB plug, driver-free plug & play
4.3-times recognition prompt after USB connection|Transfer rate : 480Mbps
5.Not Include Display Screen



Application Field

Corporate Meeting Room Touch Frame

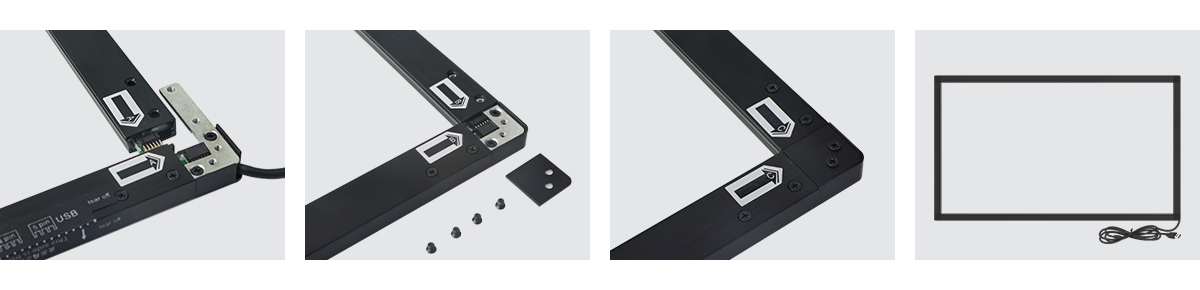

Mounting Options

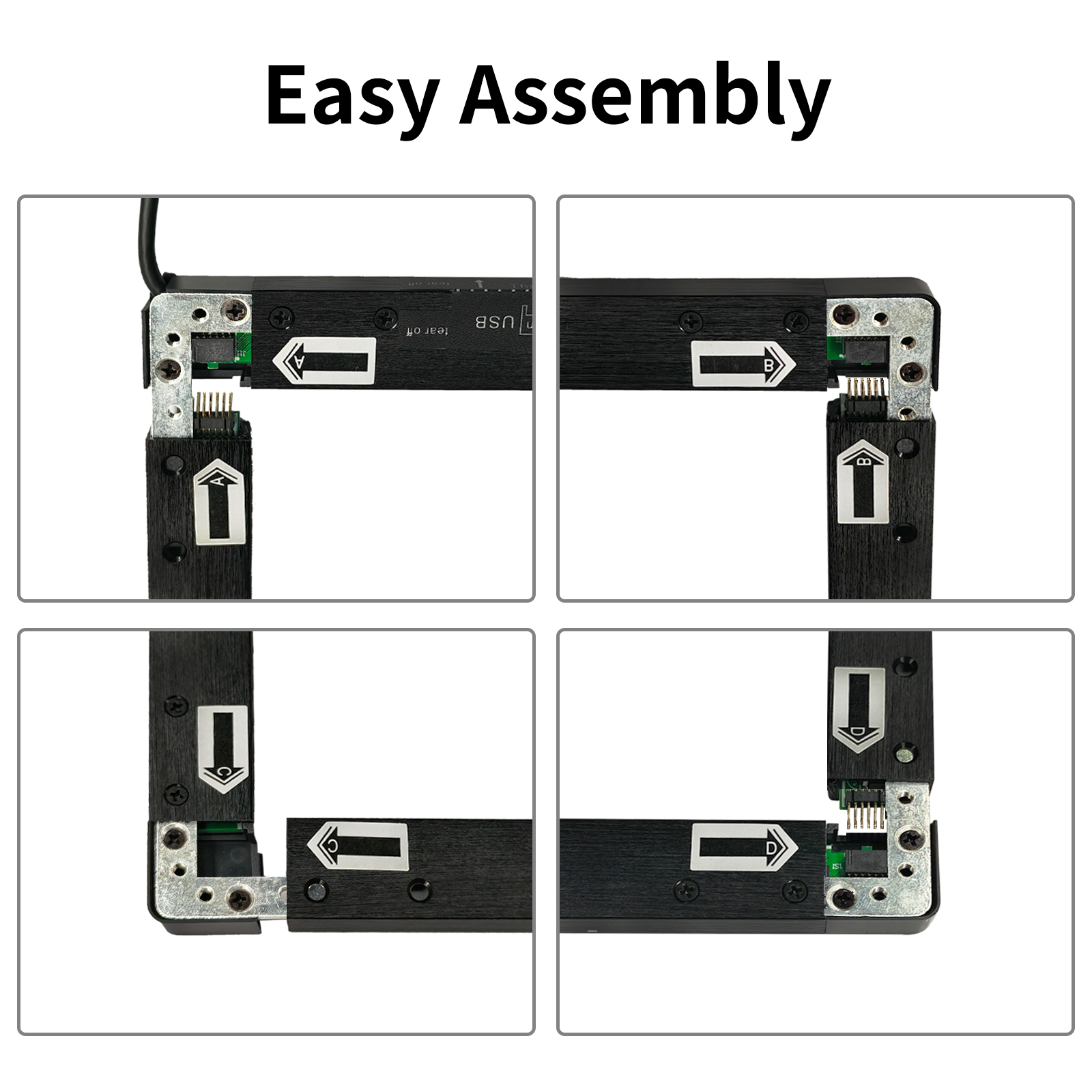

Match the NO. on the touch frame (No. A match No.A, No.B match No.B, No.C match No.C ,No.D match No.D);

Tighten the all screws(as below);Finally you will get a IR Touch Frame

Zero Calibration Touch Frame


Specifications


Product Name

Infrared Touch Frame(TL Series)

Size40 Inch
Aspect Ratio16:9Touch Point20–40 points
Dimensions935.6*548.1mmView Area

885.6*498.2mm

Light Transmission

100%

Operating VoltageDC 5V ±5%
Operating Temperature-10°C to 50°CStorage Temperature-20°C to 60°C
Touch LifespanUnlimited touchesConnectionUSB 2.0+UATR, plug-and-play
Transmission Speed480 MbpsResponse Time

<10 ms

Touch Pressure

Zero pressure

MaterialAluminum alloy frame
Supported Resolution

32768 x 32768

Touch Medium

Finger, gloved hand, stylus, and other opaque objects

Touch ObjectOpaque objects >4mm in diameterHumidity90% relative humidity, non-condensing
Operating Current

<200mA

Light ResistanceSupported
Supported SystemsWindows, Android, LinuxInstallation MethodUses a pin-type connection
